Product Description:

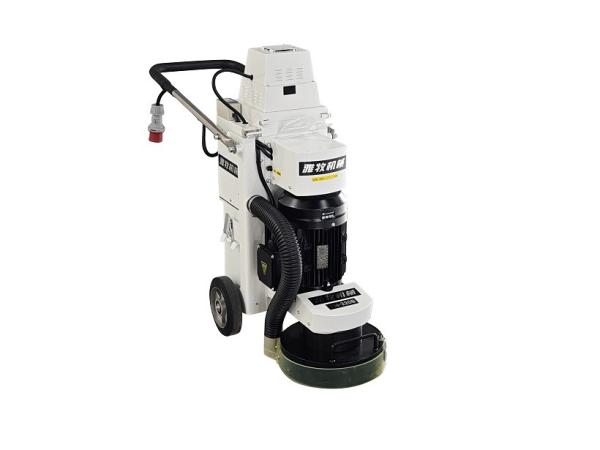

The Concrete Floor Grinding Machine is a powerful, reliable and efficient driving grinding machine that is widely used for grinding and polishing of concrete, marble, terrazzo, epoxy stone and other types of floor surfaces. It has a compact size of 1200mm*400mm*896mm, making it ideal for use in narrow and confined spaces. The built-in dust collection system can effectively collect up to 99% of grinding dust, with a capacity of 19L, making it an eco-friendly and safe choice. The powerful motor ensures a smooth, fast and uniform grinding speed, with a grinding broadband of 300mm, while the rated voltage of 220V*5A ensures excellent performance and long-term reliability.
This Edge Concrete Floor Grinder Polishing Machine is perfect for grinding and polishing of any concrete floor surface. It is equipped with high-performance grinding and polishing accessories which make it ideal for a variety of applications on concrete, terrazzo, marble and other types of floor surfaces. It is easy to operate and can be used to grind, polish and restore the surface of concrete and stone floors. This Concrete Floor Driving Grinding Machine is an excellent choice for professionals and home users who want to achieve perfect results in a short time.
Features:
- Product Name: Concrete Floor Grinding Machine
- Rated voltage*current: 380V*8.1A
- Rated voltage: 220V*5A
- Color: Orange,White,Red
- Dust Collection Efficiency: 99%
- Dust collection capacity: 19L
- Edge Concrete Floor Grinder Polishing Machine
- Hand push Semi-automatic concrete grinding machine
- Hand push Semi-automatic concrete grinding machine
Applications:
Concrete Floor Grinding Machine
Concrete Floor Grinding Machine by YAMU, model YM-320B, is certified by ISO9001 and comes with minimum order quantity of 1PCS. It is competitively priced with negotiation and is supplied with a wooden case for delivery within 7days. Payment terms are T/T and a supply ability of 10000PCS each month. The model has a rated voltage*current of 380V*8.1A and is called a Dust Cleaner, with weight of 110KG and grinding broadband of 300mm. The Dust Collection Efficiency is 99%.
Technical Parameters:
| Mode | YM-320B | YM-320D | YM-320E | YM-320V |
| Work Diameter | 320mm | 320mm | 320mm | 320mm |
| Voltage | 380v | 380v | 380v | 220v |
| Phase | 3 phase | 3 phase | 3 phase | 1 phase |
| Power | 3.7KW (5Hp) | 3.7KW (5Hp) | 3.7KW (5Hp) | 3.7KW (5Hp) |
| Frequency Converter | | | | 3.7KW (5Hp) |
| Disc Quantity | 3 | 3 | 3 | 3 |
| Rotating Speed | 0-720rpm | 0-720rpm | 0-720rpm | 0-720rpm |
| Rated voltage(cleaner) | 220V * 5A | 220V * 5A | 220V * 5A | 220V * 5A |
| Output power | 1KW | 1KW | 1KW | 1KW |
| Maximum air volume | 3M ³/ min | 3M ³/ min | 3M ³/ min | 3M ³/ min |
| Dust collection capacity | 19L | 19L | 19L | 19L |
| Weight | 120kg | 120kg | 120kg | 120kg |
| Length * width * height (mm) | 1200 * 400 * 896 | 1200 * 400 * 896 | 1200 * 400 * 896 | 1200 * 400 * 896 |
| MOTOR TYPE | Toshiba Japan | Toshiba Japan | Toshiba Japan | Toshiba Japan |
| Power line length (m) | 20M (2mm ²* 4cores) |
| Machine type | Terrazzo Marble Epoxy Stone concrete Floor Grinders |
Customization:
Customized Concrete Floor Grinding Machine
We offer customized Concrete Floor Grinding Machine with following details: Brand Name: YAMU, Model Number: YM-320B, Place of Origin: China, Certification: ISO9001, Minimum Order Quantity: 1PCS, Price: Negotiation, Packaging Details: Wooden Case, Delivery Time: 7days, Payment Terms: T/T, Supply Ability: 10000PCS each month, Grinding broadband: 300mm, Length of power cord(m): 20m(2mm²*4core), Noise: ≤70dB, Dust Collection Efficiency: 99%, Maximum air volume: 3m³/min. Our Concrete Floor Grinding Machine is perfect for hand push semi-automatic concrete grinding, polishing, and edge concrete floor grinder polishing.
Support and Services:
Technical support and service for Concrete Floor Grinding Machine include:
- Installation and setup assistance
- Troubleshooting of issues
- Software updates
- Equipment maintenance
- Parts replacement
- Product training and support
